AVSSH, Heat Resistant and Extra Thin Wall Insulated Low-voltage for Automobiles

AVSSH, Heat Resistant and Extra Thin Wall Insulated Low-voltage for Automobiles

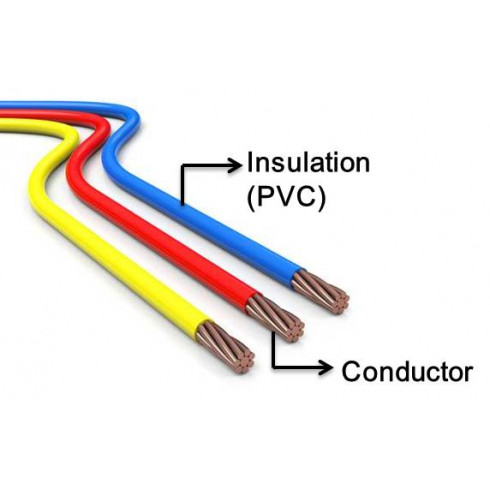

• Conductor : Soft-Annealed Copper.
• lnsulation : Iead free PVC.
• Reference standard : JASO D611.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Current Capacity : 8 Amp to 25 Amp.
• Rated temperature : 100 °C.
• Cross section area : 0.3 mm² to 2 mm².
• For automobiles, motorcycles, and other motor vehicles.

AVSSH, Heat Resistant and Extra Thin Wall Insulated Low-voltage for Automobiles  　　
Cross Section Area Conductor Insulation Overall Max Current  Stand. Length
Construction Overall Diameter Resistance Thickness  Diameter
mm² No/mm mm Ω/Km mm mm Amp Ft
0.3f 19/0.16 0.8 48.9 0.3 1.4 8 2000
or
  1000
0.5f 19/0.19 1 34.7 0.3 1.6 10
0.75f 19/0.23 1.2 23.4 0.3 1.8 13
1.25f 37/0.21 1.5 14.7 0.3 2.1 18
2f 37/0.26 1.8 9.5 0.4 2.6 25
