AEX, Heat Resistant XLPE Insulated Low-voltage for Automobiles

AEX, Heat Resistant XLPE Insulated Low-voltage for Automobiles

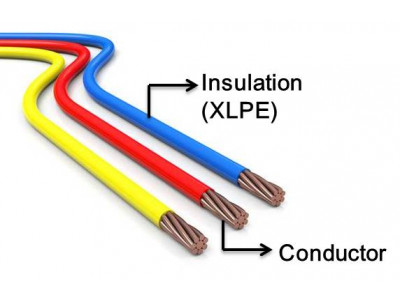

• Conductor : Soft-Annealed Copper.
• lnsulation : Iead free XLPE.
• Reference standard : JASO D611.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Current Capacity : 9 Amp to 59 Amp.
• Rated temperature : 120 °C.
• Cross section area : 0.5 mm² to 8.0 mm².
• For automobiles, motorcycles, and other motor vehicles.

AEX, Heat Resistant XLPE Insulated Low-voltage for Automobiles  　　　
Cross Section Area Conductor Insulation Overall Max Current  Stand. Length
Construction Overall Diameter Resistance Thickness  Diameter
mm² No/mm mm Ω/Km mm mm Amp Ft
0.5 7/0.32 1 32.7 0.5 2 10 2000
or
1000

0.85 16/0.26 1.2 22 0.5 2.2 13
1.25 16/0.32 1.5 14.3 0.6 2.7 17
2 26/0.32 1.9 8.81 0.6 3.1 24
3 41/0.32 2.4 5.59 0.7 3.8 33
5 65/0.32 3 3.52 0.8 4.6 45
8 50/0.45 3.7 2.32 0.8 5.3 59
0.5f 20/0.18 1 36.7 0.5 2 9
0.75f 30/0.18 1.2 24.4 0.5 2.2 12
1.25f 50/0.18 1.5 14.7 0.6 2.7 17
2f 37/0.26 1.8 9.5 0.6 3 24
