FLRY-A ISO Thin Wall PVC Wire with Symmetric Conductor (Type A) Spec

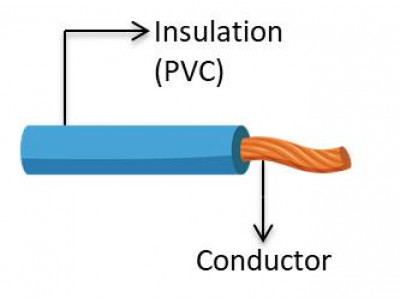

• Conductor : Soft-Annealed Copper.
• lnsulation : Iead free PVC.
• Reference standard : ISO 6722.

Inquiry

Please refer to the "Inquiry List" on Contact Us.

Summary

• Rated temperature : -40°C~+105°C.
• For automobiles, motorcycles, and other motor vehicles.

FLRY-A ISO Thin Wall PVC Wire with Symmetric Conductor (Type A) Spec
Cross Section Area	Conductor			Insulation	Overall
Cross Section Area	Construction	Overall Diameter	Resistance	Thickness	Diameter
mm²	No/mm	mm	Ω/Km	mm	mm
0.22	7/0.20	0.7	84.4	0.25	1.2
0.35	7/0.26	0.8	54.4	0.25	1.3
0.5	19/0.19	1	37.1	0.28	1.56
0.75	19/0.23	1.2	24.7	0.3	1.8
1	19/0.26	1.3	18.5	0.3	1.9
1.5	19/0.32	1.7	12.7	0.3	2.3
2	19/0.36	2	9.4	0.35	2.7
2.5	19/0.41	2.1	7.6	0.35	2.8
