Summary
• Rated temperature : -40°C~+125°C.
• For automobiles, motorcycles, and other motor vehicles.

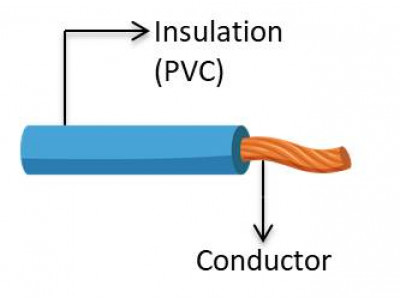

| FLYW ISO Thick Wall Heat-Resistant PVC Wire | |||||
| Cross Section Area | Conductor | Insulation | Overall | ||
| Construction | Overall Diameter | Resistance | Thickness | Diameter | |
| mm² | No/mm | mm | Ω/Km | mm | mm |
| 0.5 | 16/0.20 | 1 | 37.1 | 0.6 | 2.2 |
| 0.75 | 24/0.20 | 1.2 | 24.7 | 0.6 | 2.4 |
| 1 | 32/0.20 | 1.3 | 18.5 | 0.6 | 2.5 |
| 1.5 | 30/0.25 | 1.6 | 12.7 | 0.6 | 2.8 |
| 2 | 30/0.30 | 1.9 | 9.42 | 0.6 | 3.1 |
| 2.5 | 50/0.25 | 2.1 | 7.6 | 0.7 | 3.5 |
| 3 | 45/0.30 | 2.4 | 6.15 | 0.7 | 3.8 |
| 4 | 56/0.30 | 2.6 | 4.71 | 0.8 | 4.2 |
| 6 | 84/0.30 | 3.2 | 3.14 | 0.8 | 4.8 |
| 10 | 80/0.40 | 4.1 | 1.82 | 1 | 6.1 |
| 16 | 126/0.40 | 5.2 | 1.16 | 1 | 7.2 |
| 25 | 196/0.40 | 6.5 | 0.7 | 1.3 | 9.1 |
| 35 | 276/0.40 | 7.7 | 0.5 | 1.3 | 10.3 |
| 50 | 396/0.40 | 9.2 | 0.3 | 1.5 | 12.2 |
| 70 | 360/0.50 | 11 | 0.2 | 1.5 | 14 |
