FLYY Multi ISO Thick Wall Multi-Core PVC Wire

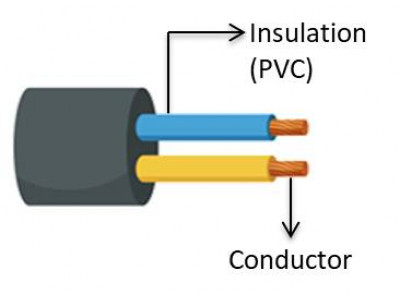

• Conductor : Soft-Annealed Copper.
• lnsulation : Iead free PVC.
• Reference standard : ISO 6722.

Inquiry

Please refer to the "Inquiry List" on Contact Us.

Summary

• Rated temperature : -40°C~+105°C.
• For automobiles, motorcycles, and other motor vehicles.

FLYY Multi ISO Thick Wall Multi-Core PVC Wire
Core Wire Number x Cross Section Area	Conductor			Insulation	Overall	Jacket	Outer Diameter
Core Wire Number x Cross Section Area	Construction	Overall Diameter	Resistance	Thickness	Diameter	Standard Thickness	Max
mm²	No/mm	mm	Ω/Km	mm	mm	mm	mm
2 x 0.50	16/0.20	1	37.1	0.6	2.2	0.5	5.4
2 x 0.75	24/0.20	1.2	24.7	0.6	2.4	0.5	5.8
2 x 1.00	32/0.20	1.3	18.5	0.6	2.5	0.8	6.8
2 x 1.50	30/0.25	1.6	12.7	0.6	2.8	0.9	7.5
3 x 0.50	16/0.20	1	37.1	0.6	2.2	0.6	6.2
3 x 0.75	24/0.20	1.2	24.7	0.6	2.4	0.6	6.3
3 x 1.00	32/0.20	1.3	18.5	0.6	2.5	0.9	7.5
3 x 1.50	30/0.25	1.6	12.7	0.6	2.8	0.7	7.5
