UL2810

UL2810

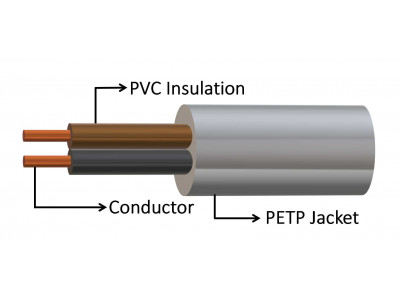

• Conductor : 40 AWG-16AWG solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and PETP film bonded with PVC.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 300Volts.
• Pass UL FT2 Horizontal flame test.
• Internal wiring of Electronic Equipment.

UL2810　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
24 11/0.16 87.6 2 0.38 0.2 1.65X3.10
22 17/0.16 55.4 2 0.38 0.2 1.85X3.50
20 26/0.16 34.6 2 0.38 0.2 2.00X3.80
18 41/0.16 21.8 2 0.38 0.2 2.25X4.30
16 65/0.16 13.7 2 0.38 0.2 2.55X4.90
14 65/0.251 8.62 2 0.38 0.2 2.95X5.70
