UL2725

UL2725

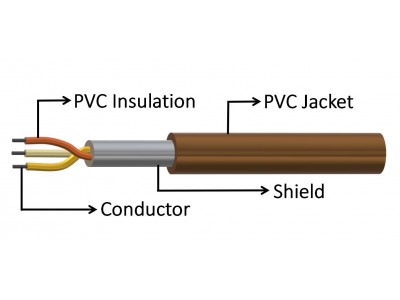

• Conductor : The tinned or bare standarded copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60 / 80°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Internal wiring of electronic equipment in Class 2 systems only.

UL2725　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 0.23 2.9
3 3.1
4 3.4
28 7/0.127 223 2 0.38 0.23 3.1
3 3.3
4 3.6
26 7/0.16 140 2 0.38 0.23 3.3
3 3.5
4 3.9
24 11/0.16 87.6 2 0.38 0.23 3.5
3 3.75
4 4.1
22 17/0.16 55.4 2 0.38 0.23 3.9
3 4.2
4 4.6
20 26/0.16 34.6 2 0.38 0.23 4.2
3 4.5
4 5
18 41/0.16 21.8 2 0.38 0.23 4.7
3 5
4 5.55
16 65/0.16 13.7 2 0.38 0.23 5.3
3 5.7
4 6.3
