UL2490

UL2490

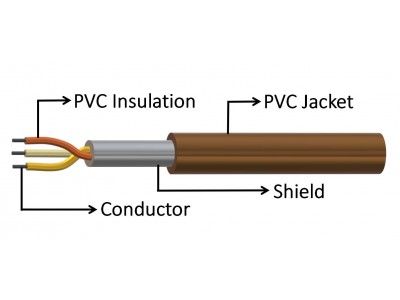

• Conductor : 36 AWG min solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60°C.
• Rated voltage : not specified.
• Passed UL VW-1 & CSA FT2 vertical flame test.
• External interconnection of computers and electronic equipment.

UL2490　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 1.52 5.5
3 5.7
4 6
28 7/0.127 223 2 0.38 1.52 5.7
3 5.9
4 6.2
26 7/0.16 140 2 0.38 1.52 5.95
3 6.15
4 6.45
24 11/0.16 87.6 2 0.38 1.52 6.15
3 6.35
4 6.75
22 17/0.16 55.4 2 0.38 1.52 6.55
3 6.7
4 7.2
20 26/0.16 34.6 2 0.38 1.52 6.8
3 7.1
4 7.55
18 41/0.16 21.8 2 0.38 1.52 7.3
3 7.7
4 8.2
16 65/0.16 13.7 2 0.38 1.52 7.9
3 8.25
4 8.9
