UL2388

UL2388

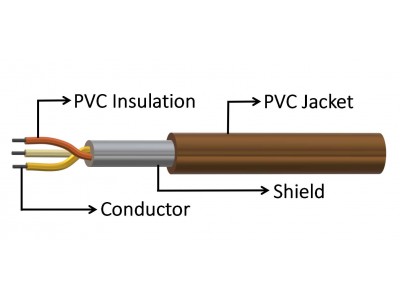

• Conductor : 40 AWG - 10 AWG solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Internal or external wiring in Class 2 circuits of computers and electronic equipment.

UL2388　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 1.52 5.5
3 5.7
4 6
28 7/0.127 223 2 0.38 1.52 5.6
3 5.8
4 6.1
26 7/0.16 140 2 0.38 1.52 5.8
3 6
4 6.3
24 11/0.16 87.6 2 0.38 1.52 6.1
3 6.3
4 6.7
22 17/0.16 55.4 2 0.38 1.52 6.3
3 6.5
4 7
20 26/0.16 34.6 2 0.38 1.52 6.7
3 7
4 7.4
18 41/0.16 21.8 2 0.38 1.52 7.1
3 7.4
4 7.9
16 65/0.16 13.7 2 0.38 1.52 7.7
3 8
4 8.6
14 41/0.251 8.62 2 0.38 1.52 8.5
3 8.6
4 9.6
12 65/0.251 5.43 2 0.38 1.52 9.5
3 10
4 10.9
10 105/0.251 3.409 2 0.38 1.52 10.8
3 11.3
4 12.3
