UL2384

UL2384

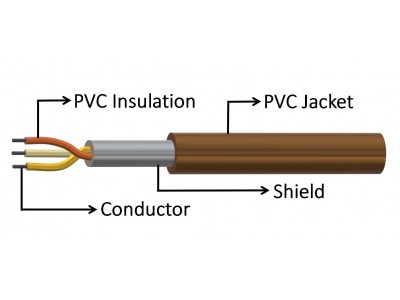

• Conductor : NA.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Internal or external wiring in Class 2 circuits of computers and electronic equipment.

UL2384　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 0.76 4
3 4.2
4 4.5
28 7/0.127 223 2 0.38 0.76 4.1
3 4.3
4 4.6
26 7/0.16 140 2 0.38 0.76 4.3
3 4.5
4 4.9
24 11/0.16 87.6 2 0.38 0.76 4.6
3 4.8
4 5.2
22 17/0.16 55.4 2 0.38 0.76 4.8
3 5.1
4 5.5
20 26/0.16 34.6 2 0.38 0.76 5.2
3 5.5
4 6
18 41/0.16 21.8 2 0.38 0.76 5.6
3 6
4 6.5
16 65/0.16 13.7 2 0.38 0.76 6.2
3 6.6
4 7.2
14 41/0.251 8.62 2 0.38 0.76 7.1
3 7.4
4 8.1
12 65/0.251 5.43 2 0.38 0.76 8
3 8.5
4 9.3
10 105/0.251 3.409 2 0.38 0.76 9.2
3 9.8
4 10.8
