UL2095

UL2095

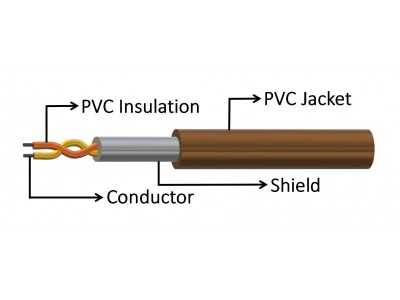

• Conductor : 32 AWG minimum, solid or stranded.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 300Volts.
• Pass UL VW-1 & CSA FT1 vertical flame test.
• Internal wiring of electronic equipment and appliances. Tags may indicate the following: "600 volts Peak for Electronic use only".

UL2095　　　　　　
Wire Size Pair  Conductor Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No No./mm Ω/km mm mm mm
30 2 7/0.10 354 0.38 0.38 3.7
3 4.35
28 2 7/0.127 223 0.38 0.38 3.9
3 4.55
26 2 7/0.16 140 0.38 0.38 4.15
3 4.85
24 2 11/0.16 87.6 0.38 0.38 4.45
3 5.2
22 2 17/0.16 55.4 0.38 0.38 4.8
20 2 26/0.16 34.6 5.2
18 2 41/0.16 21.8 0.38 0.38 5.75
16 2 65/0.16 13.7 6.45
