UL1618

UL1618

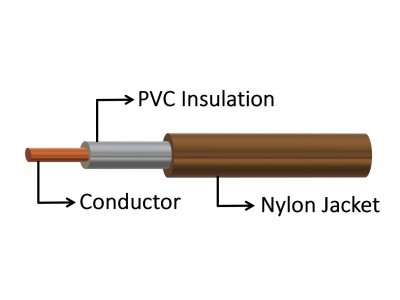

• Conductor : Solid or stranded tinned or bare copper Conductor.
• lnsulation : Lead Free PVC Insulation and PVC jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 300Volts.
• Uniform thickness of wife to ensure easy stripping And cutting.
• Passed UL VW-1 & CSA FT1 vertical flame test.
• Jacket thickness: From 5 to 50 mils.
• Internal wiring of electronic equipment.

UL1618　　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D Jacket
AWG No/mm Ω/Km mm mm mm
28 7/0.127 248 0.38 2 0.4
26 7/0.160 152 0.38 2.1 0.4
24 11/0.160 88.6 0.38 2.25 0.4
22 17/0.160 62.5 0.38 2.45 0.4
20 21/0.180 39.5 0.38 2.6 0.04
18 34/0.180 24.4 0.38 2.9 0.4
16 26/0.254 15.6 0.38 3.2 0.4
26 7/0.160 152 0.38 2.1 0.4
24 7/0.200 88.6 0.38 2.25 0.4
22 7/0.254 62.5 0.38 2.45 0.4
20 7/0.320 39.5 0.38 2.6 0.4
24 1/0.511 92.4 0.38 2 0.4
22 1/0.643 60.1 0.38 2.15 0.4
20 1/0.813 37 0.38 2.3 0.4
18 1/0.020 23.6 0.38 2.5 0.4
