UL1346

UL1346

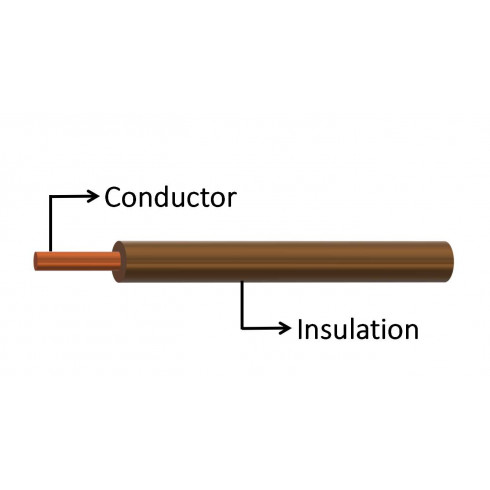

• Conductor : 8-2AWG. Stranded or solid bare or tinned copper conductor.
• lnsulation : PVC .
• Reference standard : UL758, UL1581.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• For internal wiring of electronic equipment.

UL1346　　　　
Wire Size Conductor Insulation Overall
Construction Resistance Thickness  Diameter
AWG No/mm Ω/Km mm mm
8 160/0.254 2.37 1.52 6.75
6 259/0.254 1.49 1.52 7.76
4 420/0.254 0.948 1.52 9.05
2 665/0.254 0.6 1.52 10.6
