UL1230

UL1230

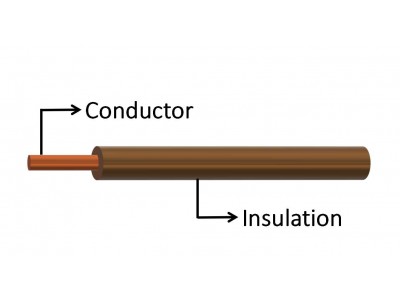

• Conductor : 26-10AWG. Stranded or solid bare or tinned copper conductor.
• lnsulation : PVC .
• Reference standard : UL758, UL1581.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• For internal wiring of electronic equipment.

UL1230　　　　
Wire Size Conductor Insulation Overall
Construction Resistance Thickness  Diameter
AWG No/mm Ω/Km mm mm
26 7/0.16 45.2 0.76 2.008
24 11/0.16 29.3 0.76 2.13
22 17/0.16 16.7 0.76 2.28
20 21/0.18 10.5 0.76 2.47
18 34/0.18 6.64 0.76 2.73
16 26/0.254 4.18 0.76 3.01
14 41/0.254 2.62 0.76 3.39
12 65/0.254 1.65 0.76 3.88
10 105/0.254 1.04 0.76 4.52
