UL1036

UL1036

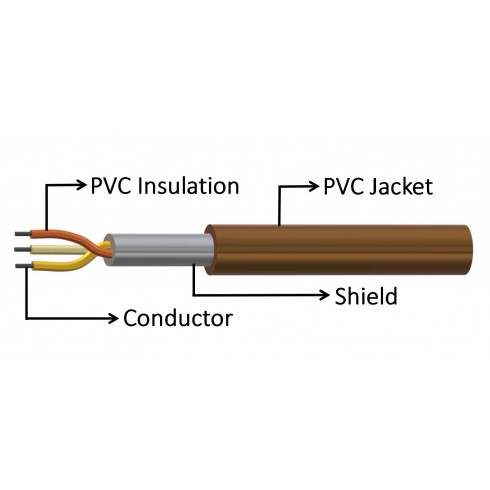

• Conductor : 30 AWG - 16 AWG Solid or Stranded Round, tinned or bare copper.
• lnsulation : PVC Insulation and Nylon Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 300Volts.
• Pass UL FT2 Horizontal flame test.
• Use Internal Wiring in electric bookkeeping, accounting, or time-recording machines.

UL1036　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness  Diameter
AWG No/mm Ω/Km mm mm mm
30 7/0.10 354 1 0.2 0.05 1
28 7/0.127 223 1 0.2 0.05 1.1
26 7/0.16 140 1 0.2 0.05 1.2
24 11/0.16 87.6 1 0.2 0.05 1.3
22 17/0.16 55.4 1 0.2 0.05 1.5
20 26/0.16 34.6 1 0.2 0.05 1.6
18 41/0.16 21.8 1 0.2 0.05 1.9
16 65/0.16 13.7 1 0.2 0.05 2.2
