UL1318

UL1318

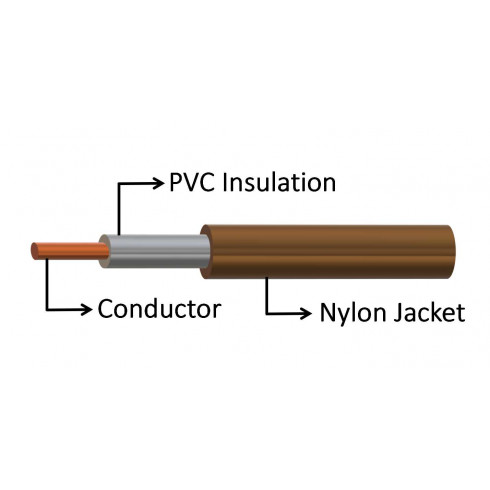

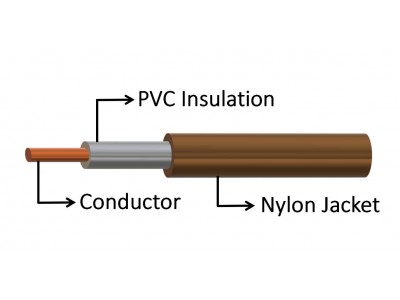

• Conductor : 8 AWG - 6 AWG solid or stranded round, tinned or bare copper, or 8-6 AWG solid or stranded aluminum (90 deg C only).
• lnsulation : PVC Insulation and Nylon Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• Pass UL FT2 Horizontal flame test.
• Internal Wiring of Appliances.

UL1318　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
8 168/0.254 2.16 1 0.76 0.13 6.15
6 266/0.254 1.39 1 0.76 0.13 6.7
