UL3619

UL3619

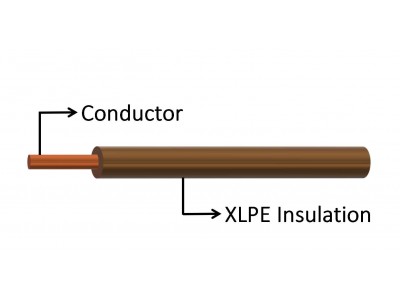

• Conductor : 36 AWG - 20 AWG solid or stranded round, silver plated, tinned or bare copper.
• lnsulation : XLPE.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80 / 105°C.
• Rated voltage : 150Volts.
• Pass UL FT2 Horizontal flame test.
• Internal wiring of appliances.

UL3619　　　　　
Wire Size Conductor ​Core Insulation Overall
Construction Resistance Thickness Diameter
AWG No./mm Ω/km mm mm
30 7/0.10 354 1 0.127 0.6
28 7/0.127 223 1 0.127 0.7
26 7/0.16 140 1 0.127 0.8
24 11/0.16 87.6 1 0.127 0.9
22 17/0.16 55.4 1 0.127 1.1
20 26/0.16 34.6 1 0.127 1.2
