UL3386

UL3386

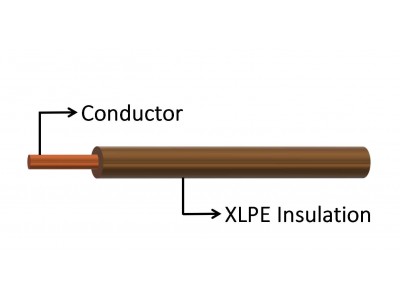

• Conductor : Solid or stranded, tinned copper conductor, 32-4AWG.
• lnsulation : Halogen free XL-PE insulation, Horizontal Flame Test.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• Non-PVC Insulation (XL-PE) , Passed UL VW-1 vertical flame test.
• Suitable for fixed internal wires of household. Appliance, headlamp, mechanical etc.

UL3386　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D
AWG No./mm Ω/km mm mm
30 7/0.100 397 0.76 1.85
28 7/0.127 248 0.76 1.9
26 7/0.160 152 0.76 2.1
24 11/0.160 88.6 0.76 2.2
22 17/0.160 62.5 0.76 2.4
20 21/0.180 39.5 0.76 2.6
18 34/0.180 24.4 0.76 2.8
16 26/0.254 15.6 0.76 3.1
14 41/0.254 9.9 0.76 3.5
12 65/0.254 6.24 0.76 4.1
10 105/0.254 4.15 0.76 4.8
30 1/0.254 377 0.76 1.8
28 1/0.320 232 0.76 1.85
26 1/0.040 155 0.76 1.95
24 1/0.500 92.4 0.76 2.15
22 1/0.643 60.1 0.76 2.3
20 1/0.813 37 0.76 2.45
