Coaxial Cable RG178B/U RG179 RG316

Coaxial Cable RG178B/U RG179 RG316

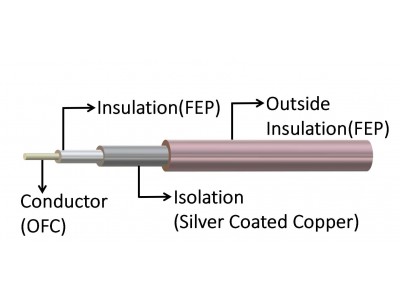

• Conductor : Silver coated Copper, Silver coated Copper clad Steel.
• lnsulation : FEP Teflon.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : -70°C~+200°C.
• Rated voltage : 30Volts.
• RG178B/U、RG179、RG316Coaxial Cable is suitable for any kind of signal receivers such as cellphone, computer, home appliance, PDA, digital camera, GPA, TV stereo, and internet equipment.

RG178B/U RG179 RG316　　　　　　　
Wire Size Conductor Insulation Jacket Thickness Braid Capactiance Voltage Standing Wave Radio (max.)
Construction Resistance Diameter Diameter Coverage Frequency (Hz)
AWG No./mm Ω/km mm mm % (pF/ft) 3GHz 6GHz
30 7 x 38 50 0.86 1.8 95 29 1.2 1.3
30 7 x 38 75 1.58 2.54 95 19.5 1.2 1.3
26 7 x 34 50 1.53 2.52 95 29 1.2 1.3
30 1 x 30 50 0.8 1.27 93 29 310 520
32 7 x 40 50 0.66 1.13 90 29 480 720
32 7 x 40 50 0.66 1.32 90/90 29 380 620
34 7 x 42 50 0.53 0.98 97 29 530 780
36 7 x 44 50 0.4 0.8 89 29 580 950
