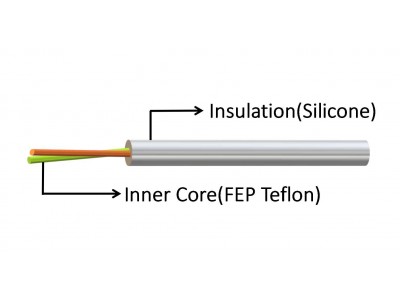

Teflon Silicone Medical Wire

Teflon Silicone Medical Wire

• Conductor : Tinned Copper.
• lnsulation :  FEP Teflon.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : -60°C~+200°C.
• Rated voltage : 600Volts.
• FEP Silicone Medical Wire is suitable for the electrical wiring of medical equipment.

Medical Wire　　　　　　
Wire Size Conductor Insulation Jacket ​Core  Overall
Construction Resistance Thickness Thickness Diameter Diameter
AWG No./mm Ω/km mm mm mm mm
20 x 2C 0.19 x 19 35.2 0.3 0.75 1.55 4.6
18 x 2C 0.235 x 19 23.3 0.3 0.75 1.76 5.02
16 x 2C 0.3 x 19 15.1 0.35 0.75 2.16 5.82
20 x 3C 0.19 x 19 35.2 0.3 0.85 1.55 4.8
18 x 3C 0.235 x 19 23.3 0.3 0.85 1.76 5.22
16 x 3C 0.3 x 19 15.1 0.35 0.85 2.16 6.02
