Summary
• Temperature : -100°C~+250°C.
• Rated voltage : 600Volts.

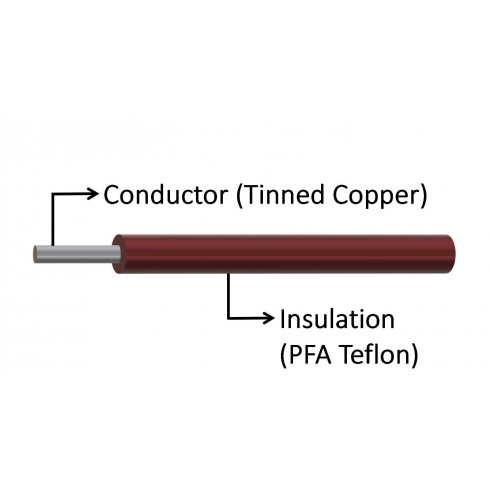

• UL10344 PTFE Teflon Wire is suitable for fields that require high temperature endurance. Application ranges from household appliances, lighting devices, to industrial machines, and high-temperature furnace.
| UL10344 | |||||
| Wire Size | Conductor | Insulation | Max Current | ||
| Construction | Resistance | Thickness | O.D | ||
| AWG | No./mm | Ω/km | mm | mm | Amp |
| 28 | 0.12 x 7 | 223 | 0.18 | 0.73 | 1 |
| 26 | 0.16 x 7 | 139 | 0.18 | 0.86 | 1.5 |
| 24 | 0.12 x 19 | 88.9 | 0.18 | 0.96 | 2 |
| 22 | 0.16 x 19 | 57.5 | 0.18 | 1.12 | 3 |
| 20 | 0.19 x 19 | 35.2 | 0.18 | 1.32 | 5 |
| 18 | 0.235 x 19 | 23.3 | 0.18 | 1.54 | 8 |
| 16 | 0.3 x 19 | 15.1 | 0.18 | 1.87 | 11 |
| 14 | 0.37 x 19 | 9.8 | 0.18 | 2.17 | 15 |
| 12 | 0.46 x 19 | 5.4 | 0.18 | 2.68 | 21 |
| 10 | 0.6 x 19 | 4.1 | 0.18 | 3.38 | 29 |
