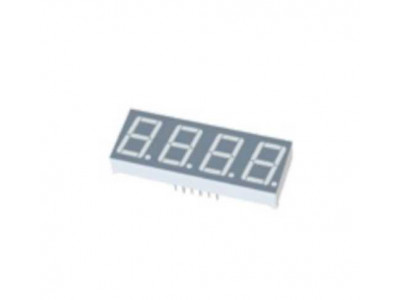

Four Digit Display

Four Digit Display

Features

  • Industrial standard size.
  • Low power consumption.
  • Categorized for luminous intensity.
  • Pb free.
  • The product itself will remain within RoHS compliant version.

Other Applications

  • Audio equipment.
  • Instrument panels.
  • Digital read out display.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

Segement Height

10mm / 14.22mm

Segement Width

6mm / 8.13mm

Forward Current(IF)

25mA

Forward Voltage(VF)

2.0V / 2.75V

Color

Brilliant Red  / Brilliant Yellow Green / Deep Red / Reddish Orange / Pure White / Orange / Blue

Resin Color

White

Face Color

Gray / Black

Luminous Intensity(IV)

2.8 ~ 195mcd

Operating Temperature

-40℃~+85℃
