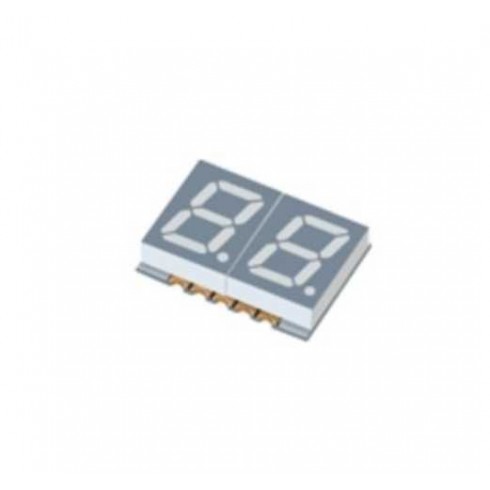

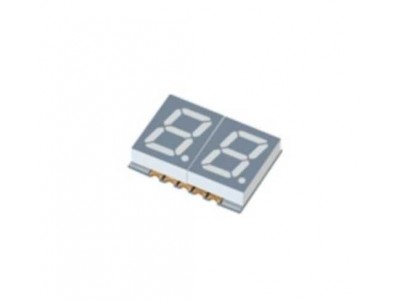

Dual Digit Display

Dual Digit Display

Features

  • Packaged in tape and reel for SMT manufacturing.
  • Design flexibility (common cathode or anode).
  • Categorized for luminous intensity.
  • The thickness is thinness than tradition display.
  • Pb free.
  • The product itself will remain within RoHS compliant version.

Other Applications

  • Suitable for indoor use.
  • Audio system.
  • Set top box.
  • Game machine.
  • Channel indicator of TV.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

Segement Height

10mm / 14.22mm

Segement Width

6.2mm / 8.1mm

Forward Current(IF)

25mA

Forward Voltage(VF)

2.0V / 3.3V

Color

Brillant Red / Brillant Yellow Green / Pure White / Deep Red

Resin Color

White

Face Color

Gray

Luminous Intensity(IV)

12.5 ~ 67mcd

Operating Temperature

-40℃~+85℃/ -40℃~+105℃
