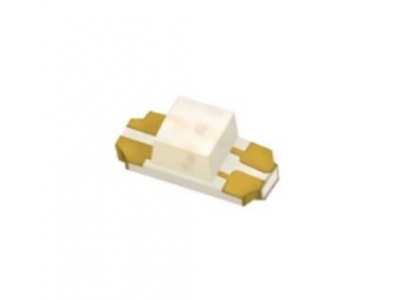

Reverse Mount Bi-Color

Reverse Mount Bi-Color

Features

  • Package in 8mm tape on 7〞diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • Pb-free.
  • The product itself will remain within RoHS compliant version.

Other Applications

  • Backlighting in dashboard and switch.
  • Telecommunication: indicator and backlighting in telephone and fax.
  • Flat backlight for LCD.
  • switch and symbol.
  • General use.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

Size

3.2x1.25x1.1mm

Color

Dark Red/ Brilliant Yellow Green / Pure White / Brilliant Orange / Blue

Viewing Angle

130 / 140deg

Forward Current(IF)

10 / 25mA

Forward Voltage(Vf)

Dark Red:2.0V
Brilliant Yellow Green:2.0V
Pure White:3.1V
Brilliant Orange:1.85V

Luminous Intensity(IV)

Dark Red:18~72mcd
Brilliant Yellow Green:14.5~45mcd
Pure White:45~112mcd
Brilliant Orange:9.0~22.5mcd / 22.5~57mcd
Blue:22.5~57mcd

Operating Temperature

-40℃~+85℃
