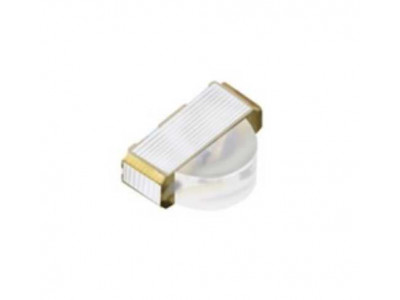

Side View Bi-Color

Side View Bi-Color

Features

  • Package in 8mm tape on 7〞diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • Pb-free.
  • The product itself will remain within RoHS compliant version.

Other Applications

  • Backlighting in dashboard and switch.
  • Telecommunication: indicator and backlighting in telephone and fax.
  • Flat backlight for LCD.
  • switch and symbol.
  • General use.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

Size

3.0x2.0x1.0mm

Color

Blue / Brilliant Orange / Dark-Red / Brilliant Yellow Green / Brilliant Red / Pure White

Viewing Angle

120 / 130deg

Forward Current(IF)

10 / 25mA

Forward Voltage(Vf)

B:3.3V
S:2.0V
R:2.0V
G:2.0V
T:2.5~3.2V

Luminous Intensity(IV)

B:18~45mcd
S:18~45mcd
R:18~90mcd
G:45~90mcd
T:57~112mcd

Operating Temperature

-40℃~+85℃
