Summary
• Temperature : 60 / 75 / 80 / 90 / 105°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Woven through chain links of chain-suspended fixtures; also for internal wiring of appliances.

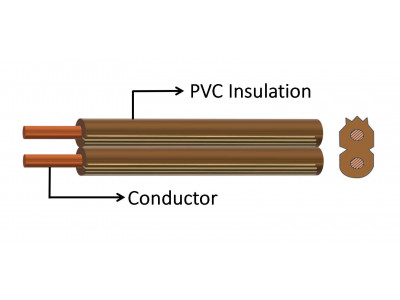

| UL20288 | |||||
| Wire Size | Conductor | Core | Insulation | Overall | |
| Construction | Resistance | Thickness | Diameter | ||
| AWG | No./mm | Ω/km | mm | mm | |
| 18 | 41/0.16 | 21.8 | 2 | 0.38 | 3.45X6.25 |
| 16 | 65/0.16 | 13.7 | 2 | 0.38 | 3.75X6.85 |
| 14 | 41/0.251 | 8.62 | 2 | 0.38 | 4.15X7.60 |
| 12 | 65/0.251 | 5.43 | 2 | 0.38 | 4.65X8.55 |
