UL2584

UL2584

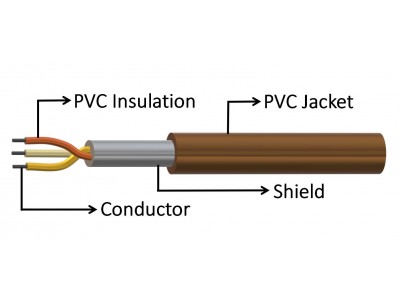

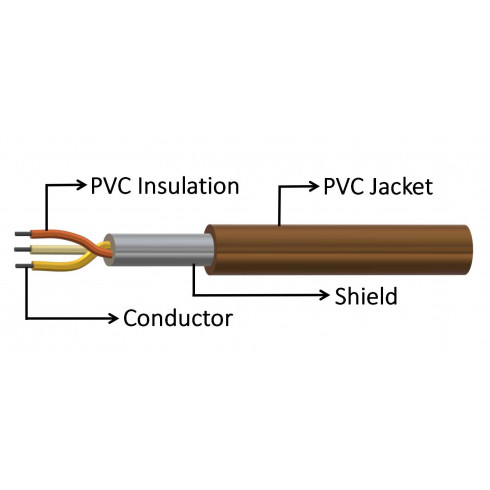

• Conductor : 40~9 AWG , solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 125Volts.
• Pass UL VW-1 & CSA FT1 vertical flame test.
• External interconnection of electronic equipment or internal wiring of electronic equipment or appliances.

UL2584　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 0.76 3.9
3 4.1
4 4.4
28 7/0.127 223 2 0.38 0.76 4.1
3 4.3
4 4.6
26 7/0.16 140 2 0.38 0.76 4.3
3 4.5
4 4.9
24 11/0.16 87.6 2 0.38 0.76 4.5
3 4.7
4 5.1
22 17/0.16 55.4 2 0.38 0.76 4.9
3 5.2
4 5.6
20 26/0.16 34.6 2 0.38 0.76 5.2
3 5.5
4 5.95
18 41/0.16 21.8 2 0.38 0.76 5.7
3 6
4 6.6
16 65/0.16 13.7 2 0.38 0.76 6.3
3 6.7
4 7.3
