UL2569

UL2569

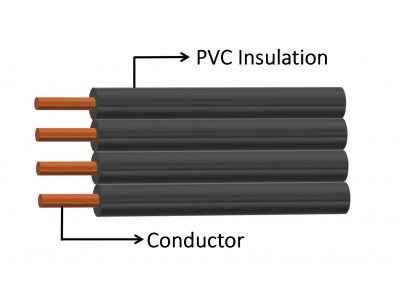

• Conductor : 30-16 AWG solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• Pass UL VW-1 & CSA FT1 vertical flame test.
• Internal wiring.

UL2569　　　　　
Wire Size Conductor ​Core Insulation Overall
Construction Resistance Thickness Diameter
AWG No./mm Ω/km mm mm
30 7/0.10 354 2 0.76 2.00*3.80
3 2.00*5.70
28 7/0.127 223 2 0.76 2.10*4.00
3 2.10*5.90
26 7/0.16 140 2 0.76 2.20*4.20
3 2.20*6.20
24 11/0.16 87.6 2 0.76 2.30*4.45
3 2.30*6.60
22 17/0.16 55.4 2 0.76 2.45*4.75
20 26/0.16 34.6 2 2.65*5.10
18 41/0.16 21.8 2 0.76 2.85*5.60
16 65/0.16 13.7 2 3.20*6.20
