UL2405

UL2405

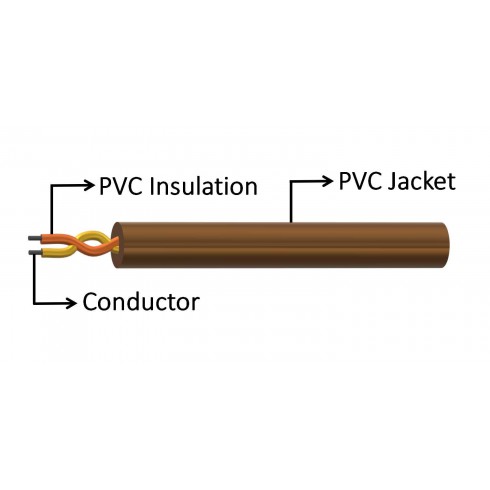

• Conductor : 30 AWG - 16 AWG solid or stranded.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Internal wiring of Electronic Equipment.

UL2405　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.38 0.38 3.3
3 3.5
4 3.75
28 7/0.127 223 2 0.38 0.38 3.4
3 3.6
4 3.9
26 7/0.16 140 2 0.45 2.03 3.6
3 3.8
4 4.1
24 11/0.16 87.6 2 0.45 2.03 3.8
3 4.1
4 4.5
22 17/0.16 55.4 2 0.45 2.03 4.1
3 4.3
4 4.75
20 26/0.16 34.6 2 0.45 2.03 4.5
3 4.7
4 5.2
18 41/0.16 21.8 2 0.45 2.03 4.9
3 5.2
4 5.7
16 65/0.16 13.7 2 0.45 2.03 5.5
3 5.85
4 6.4
