UL1672

UL1672

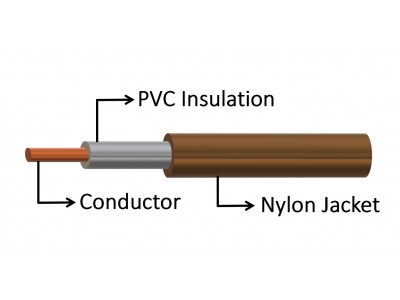

• Conductor : Solid or stranded tinned or bare copper Conductor.
• lnsulation : Lead Free PVC Insulation and PVC jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 300Volts.
• Uniform thickness of wife to ensure easy stripping And cutting.
• Passed UL VW-1 & CSA FT1 vertical flame test.
• Jacket thickness: From 5 to 40 mils.
• Internal wiring of electronic equipment.

UL1672　　　　　
Wire Size Conductor Insulation Overall
Construction Resistance Thickness Jacket Diameter
AWG No./mm Ω/km mm mm mm
26 7/0.160 152 0.4 0.5 2.3
24 11/0.160 88.6 0.4 0.5 2.4
22 17/0.160 62.5 0.4 0.5 2.6
20 21/0.180 39.5 0.4 0.5 2.8
18 34/0.180 24.4 0.4 0.5 3.1
16 26/0.254 15.6 0.4 0.5 3.4
28 7/0.127 248 0.4 0.5 2.25
26 7/0.160 152 0.4 0.5 2.3
24 7/0.200 88.6 0.4 0.5 2.4
22 7/0.254 62.5 0.4 0.5 2.6
20 7/0.320 39.5 0.4 0.5 2.8
26 1/0.404 155 0.4 0.5 2.25
24 1/0.511 92.4 0.4 0.5 2.35
22 1/0.643 60.1 0.4 0.5 2.55
20 1/0.813 37 0.4 0.5 2.7
18 1/1.020 23.6 0.4 0.5 2.9
