UL1571

UL1571

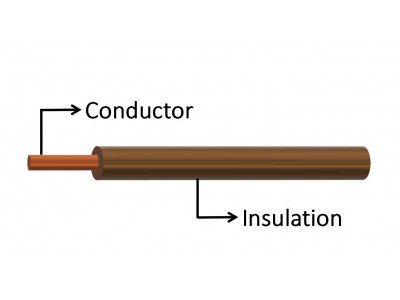

• Conductor : Tinned, bared, stranded or Solid copper Conductor, MIN, 50AWG.
• lnsulation : Lead Free SR-PVC.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 30Volts.
• Uniform thickness of wire to ensure easy stripping And cutting.
• Pass UL VW-1 & CSA FT1 vertical flame test.
• Internal Wiring of class 2 circuits in electronic equipment.

UL1571　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D
AWG No/mm Ω/Km mm mm
34 7/0.060 728.5 0.2 0.6
32 7/0.080 703 0.2 0.65
30 7/0.100 397 0.2 0.7
28 7/0.127 248 0.2 0.8
26 7/0.160 152 0.2 0.9
24 11/0.160 88.6 0.2 1.05
34 7/0.060 728.5 0.2 0.6
32 7/0.080 703 0.2 0.65
30 7/0.100 397 0.2 0.7
28 7/0.127 248 0.2 0.8
26 7/0.160 152 0.2 0.9
24 7/0.200 88.6 0.2 1.05
32 1/0.203 575 0.2 0.6
30 1/0.254 377 0.2 0.65
28 1/0.320 232.1 0.2 0.75
26 1/0.404 155 0.2 0.85
24 1/0.511 92.4 0.2 0.95
