UL1617

UL1617

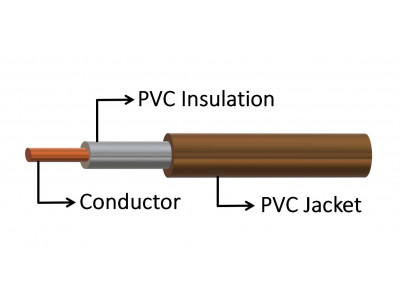

• Conductor : Solid or stranded tinned or bare Conductor.
• lnsulation : Lead Free PVC Insulation and PVC jacket.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 600Volts.
• Uniform thickness of wife to ensure easy stripping And cutting.
• Passed UL VW-1 & CSA FT1 vertical flame test.
• Jacket thickness: From 5 to 40 mils.
• Internal wiring of electronic equipment.

UL1617　　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D Jacket
AWG No/mm Ω/Km mm mm mm
28 7/0.127 248 0.76 2.7 0.4
26 7/0.160 152 0.76 2.9 0.4
24 11/0.160 88.6 0.76 3 0.4
22 17/0.160 62.5 0.76 3.2 0.4
17/0.160 62.5 0.76 2.9 0.3
20 21/0.180 39.5 0.76 3.4 0.4
18 34/0.180 24.4 0.76 3.6 0.4
24 7/0.200 88.6 0.76 2.9 0.4
22 7/0.254 54.8 0.76 3 0.4
20 7/0.320 34.1 0.76 3.2 0.4
24 1/0.511 92.4 0.76 2.9 0.4
22 1/0.643 60.1 0.76 3.1 0.4
20 1/0.813 37 0.76 3.25 0.4
18 1/1.024 23.6 0.76 3.5 0.4
