UL2560

UL2560

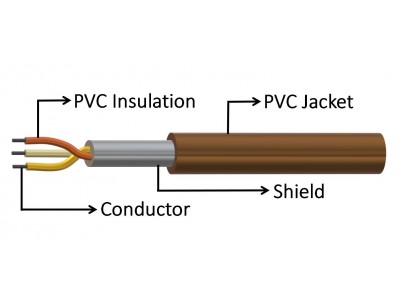

• Conductor : The tinned or bare standarded copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60°C.
• Rated voltage : 30Volts.
• Pass UL VW-1 & CSA FT1 vertical flame test.
• Interconnecting cable for use with EDP equipment where terminated in connectors and located entirely exterior to the equipment, Class 2 wiring systems only.

UL2560　　　　　　
Wire Size Conductor ​Core Insulation Jacket Overall
Construction Resistance Thickness Thickness Diameter
AWG No./mm Ω/km mm mm mm
30 7/0.10 354 2 0.25 0.76 3.6
3 3.7
4 4
28 7/0.127 223 2 0.25 0.76 3.9
3 4
4 4.4
26 7/0.16 140 2 0.25 0.76 4.1
3 4.3
4 4.6
24 11/0.16 87.6 2 0.25 0.76 4.3
3 4.5
4 4.85
22 17/0.16 55.4 2 0.25 0.76 4.6
3 4.85
4 5.2
20 26/0.16 34.6 2 0.25 0.76 4.9
3 5.2
4 5.5
18 41/0.16 21.8 2 0.25 0.76 5.5
3 5.8
4 6.3
16 65/0.16 13.7 2 0.25 0.76 6.1
3 6.35
4 7
