UL1185

UL1185

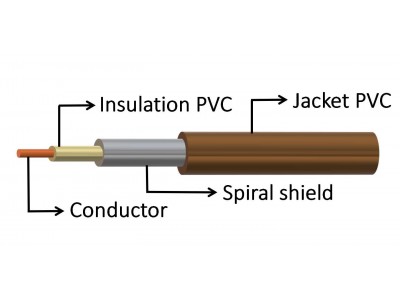

• Conductor : Stranded or solid, tinned or bare copper Conductor.
• lnsulation : Lead Free PVC Insulation, Lead free PVC jacket.
• Tinned copper wire spiral shield.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 300Volts.
• Passes VW-ISC Vertical Flame Test.
• Use in recording studios, sound systems and electroniccircuits.

UL1185　　　　　　　
Wire Size Conductor ​Core Insulation Spiral Shied Jacket Overall
Construction Thickness O.D Thickness  Diameter
AWG No/mm mm mm No./mm mm mm
30 7/0.100 1 0.38 1.1 33/0.100 0.4 2.1
28 7/0.127 1 0.38 1.2 39/0.100 0.4 2.2
26 7/0.160 1 0.38 1.3 41/0.100 0.4 2.3
24 7/0.200 1 0.38 1.45 43/0.100 0.4 2.45
24 11/0.160 1 0.38 1.45 43/0.100 0.4 2.45
22 17/0.160 1 0.38 1.6 39/0.120 0.4 2.65
22 7/0.254 1 0.38 1.6 39/0.120 0.4 2.65
20 21/0.180 1 0.38 1.8 44/0.120 0.4 3
20 65/0.100 1 0.38 1.8 45/0.120 0.4 3.1
18 34/0.180 1 0.38 2.05 47/0.120 0.4 3.15
18 72/0.120 1 0.38 2.15 65/0.100 0.4 3.5
16 26/0.254 1 0.38 2.35 51/0.120 0.4 3.4
