UL10368

UL10368

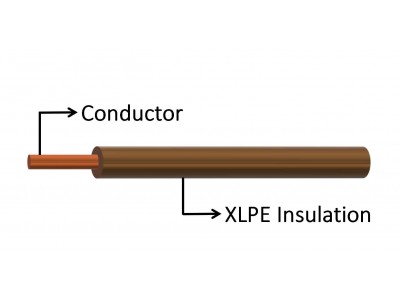

• Conductor : Solid or stranded, tinned copper , 40-10AWG.
• lnsulation : Halogen free XL-PE insulation, Horizontal Flame Test.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 300Volts.
• Non-PVC Insulation (XL-PE) , Passed UL VW-1 vertical flame test.
• Suitable for fixed internal wires of household. Appliance, headlamp, mechanical etc.

UL10368　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D
AWG No./mm Ω/km mm mm
32 7/0.080 703 0.23 0.75
30 7/0.100 397 0.23 0.8
28 7/0.127 248 0.23 0.9
26 7/0.160 152 0.23 1
24 11/0.160 88.6 0.23 1.15
22 17/0.160 62.5 0.23 1.3
20 21/0.180 39.5 0.23 1.5
18 34/0.180 24.4 0.23 1.75
16 26/0.254 15.6 0.23 2.05
28 1/0.320 232 0.23 0.8
26 1/0.040 155 0.23 0.9
24 1/0.500 92.4 0.23 1
22 1/0.643 60.1 0.23 1.15
20 1/0.813 37 0.23 1.3
18 1/1.020 22 0.23 1.5
