UL3385

UL3385

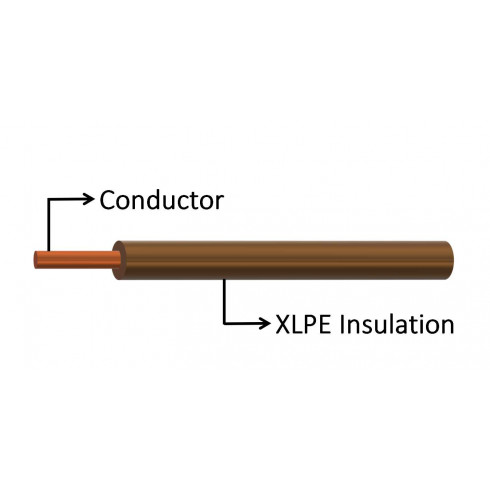

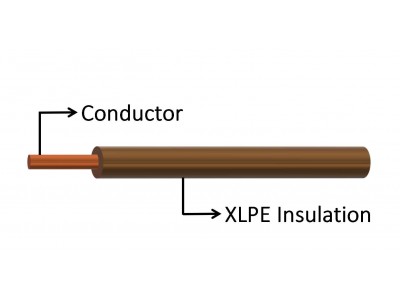

• Conductor : Solid or stranded, tinned copper conductor, 32-10AWG.
• lnsulation : Halogen free XL-PE insulation, Horizontal Flame Test.
• Insulatior : 2000VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 105°C.
• Rated voltage : 300Volts.
• Non-PVC Insulation (XL-PE) , Passed UL VW-1 vertical flame test.
• Suitable for fixed internal wires of household. Appliance, headlamp, mechanical etc.

UL3385　　　　
Wire Size Conductor Insulation
Construction Resistance Thickness O.D
AWG No./mm Ω/km mm mm
30 7/0.100 397 0.38 1.1
28 7/0.127 248 0.38 1.2
26 7/0.160 152 0.38 1.3
24 11/0.160 88.6 0.38 1.45
22 17/0.160 62.5 0.38 1.6
20 21/0.180 39.5 0.38 1.85
18 34/0.180 24.4 0.38 2.1
16 26/0.254 15.6 0.38 2.35
14 41/0.254 9.9 0.38 2.8
28 1/0.320 232 0.38 1.15
26 1/0.040 155 0.38 1.25
24 1/0.500 92.4 0.38 1.35
22 1/0.643 60.1 0.38 1.5
20 7/0.813 37 0.38 1.65
18 1/1.020 22 0.38 1.85
