UL3346

UL3346

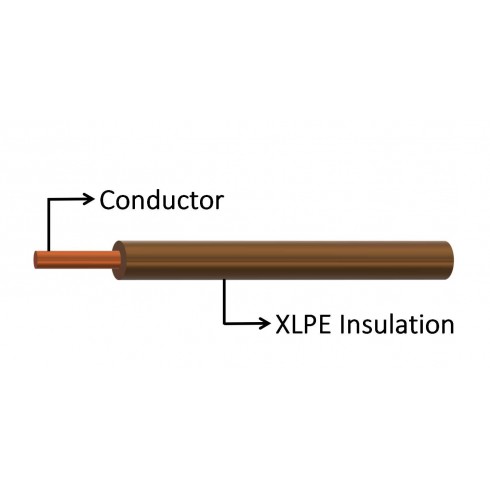

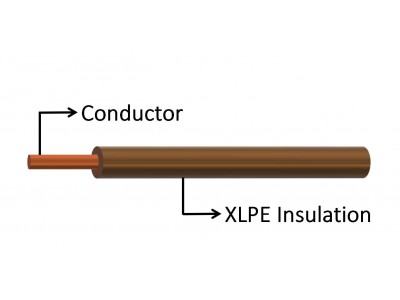

• Conductor : 32 AWG - 16 AWG solid or stranded, tinned, bare or silver plated copper, or solid or stranded coated high strength copper - min.90% conductivity.
• lnsulation : XLPE.
• Insulatior : 1500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 80°C.
• Rated voltage : 150Volts.
• Pass UL FT2 Horizontal flame test.
• Internal Wiring of Appliances. Tags may indicate the following: 300 Volt Peak - For Electronic Use Only.

UL3346　　　　　
Wire Size Conductor ​Core Insulation Overall
Construction Resistance Thickness Diameter
AWG No./mm Ω/km mm mm
30 7/0.10 354 1 0.25 0.9
28 7/0.127 223 1 0.25 1
26 7/0.16 140 1 0.25 1.1
24 11/0.16 87.6 1 0.25 1.2
22 17/0.16 55.4 1 0.25 1.4
20 26/0.16 34.6 1 0.25 1.5
18 41/0.16 21.8 1 0.25 1.8
16 65/0.16 13.7 1 0.25 2.1
