Summary
• Temperature : -80°C~+200°C.
• Rated voltage : 450/750Volts.

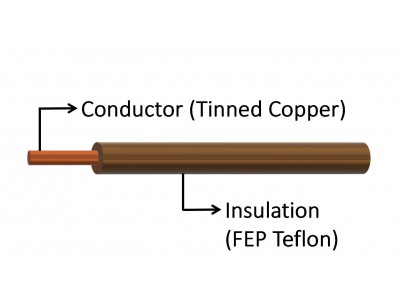

• VDE8220 FEP Teflon Wire suitable for fields that require high temperature endurance. Application ranges from household appliances, lighting devices, to industrial machines, and high-temperature furnaces.
| VDE8220 | ||||
| Cross Section Area | Conductor | Insulation | ||
| Construction | Resistance | Thickness | O.D | |
| mm² | No./mm | Ω/km | mm | mm |
| 0.3 | 0.254 x 7 | 57.5 | 0.4 | 1.56 |
| 0.16 x 19 | ||||
| 0.5 | 0.32 x 7 | 35.2 | 0.4 | 1.75 |
| 0.19 x 19 | ||||
| 0.75 | 0.39 x 7 | 23.3 | 0.4 | 1.99 |
| 0.235 x 19 | 1.98 | |||
| 1 | 0.254 x 19 | 17.98 | 0.4 | 2.11 |
| 1.5 | 0.32 x 19 | 12.7 | 0.5 | 2.61 |
| 2 | 0.37 x 19 | 9.8 | 0.6 | 3.01 |
| 2.5 | 0.42 x 19 | 9.1 | 0.6 | 3.26 |
| 3 | 0.45 x 19 | 5.4 | 0.6 | 3.46 |
