UL10393

UL10393

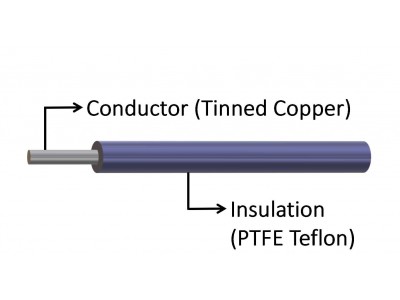

• Conductor : Tinned Copper/ Silver Plated Copper/ Nickel Plated Copper.
• lnsulation : PTFE Teflon.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : -100°C~+250°C.
• Rated voltage : 600Volts.
• UL10393 PTFE Teflon Wire is suitable for fields that require high temperature endurance. Application ranges from household appliances, lighting devices, to industrial machines, and high-temperature furnaces.

UL10393　　　　　
Wire Size Conductor Insulation Max Current
Construction Resistance Thickness O.D
AWG No./mm Ω/km mm mm Amp
30 0.1 x 7 354 0.33 0.97 0.8
28 0.12 x 7 223 0.33 1.03 1
26 0.16 x 7 139 0.33 1.16 1.5
24 0.12 x 19 88.9 0.33 1.26 2
22 0.16 x 19 57.5 0.33 1.42 3
20 0.19 x 19 35.2 0.33 1.62 5
18 0.235 x 19 23.3 0.33 1.84 8
16 0.3 x 19 15.1 0.33 2.17 11
14 0.37 x 19 9.8 0.33 2.47 15
12 0.45 x 19 5.4 0.33 2.98 21
10 0.6 x 19 4.1 0.33 3.68 29
