UL1887

UL1887

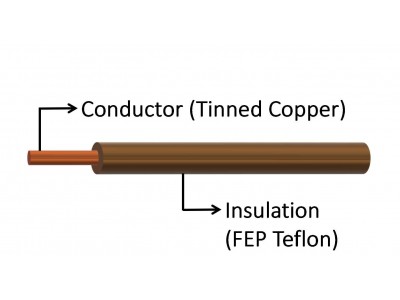

• Conductor : Tinned Copper/ Silver Plated Copper/ Nickel Plated Copper.
• lnsulation :  FEP Teflon.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : -60°C~+150°C.
• Rated voltage : 600Volts.
• UL1887 FEP Teflon Wire is suitable for fields that require high temperature endurance. Application ranges from household appliances, lighting devices, to industrial machines, and high-temperature furnaces.

UL1887　　　　　
Wire Size Conductor Insulation Max Current
Construction Resistance Thickness O.D
AWG No./mm Ω/km mm mm Amp
28 0.12 x 7 223 0.36 1.09 1
26 0.16 x 7 139 0.36 1.22 1.5
24 0.12 x 19 88.9 0.36 1.32 2
22 0.16 x 19 57.5 0.36 1.48 3
20 0.19 x 19 35.2 0.36 1.68 5
18 0.235 x 19 23.3 0.36 1.9 8
16 0.3 x 19 15.1 0.36 2.23 11
14 0.37 x 19 9.8 0.36 2.53 15
