UL2800

UL2800

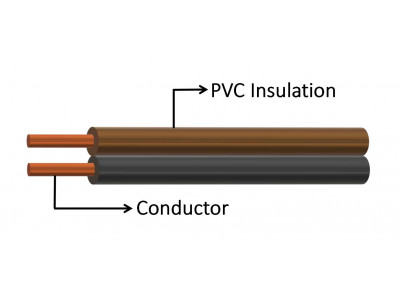

• Conductor : 40 AWG min, solid or stranded round, tinned or bare copper.
• lnsulation : PVC Insulation and Jacket.
• Insulatior : 500VAC/min.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 60°C.
• Rated voltage : 30Volts.
• Passes UL VW-1 & CAS FT1 vertical flame test.
• Wiring of low energy nonhazardous circuits in audio and video equipment.

UL2800　　　　　
Wire Size Conductor ​Core Insulation Overall
Construction Resistance Jacket Diameter
AWG No./mm Ω/km mm mm
30 7/0.10 354 2 0.38 1.20X2.25
28 7/0.127 223 2 0.38 1.20X2.40
26 7/0.16 140 2 0.38 1.30X2.60
24 11/0.16 87.6 2 0.38 1.50X2.90
22 17/0.16 55.4 2 0.38 1.60X3.20
20 26/0.16 34.6 2 0.38 1.75X3.50
18 41/0.16 21.8 2 0.38 2.00X4.00
16 65/0.16 13.7 2 0.38 2.30X4.60
14 41/0.251 8.62 2 0.38 2.70X5.35
12 65/0.251 5.43 2 0.38 3.15X6.30
10 105/0.251 3.409 2 0.38 3.80X7.60
