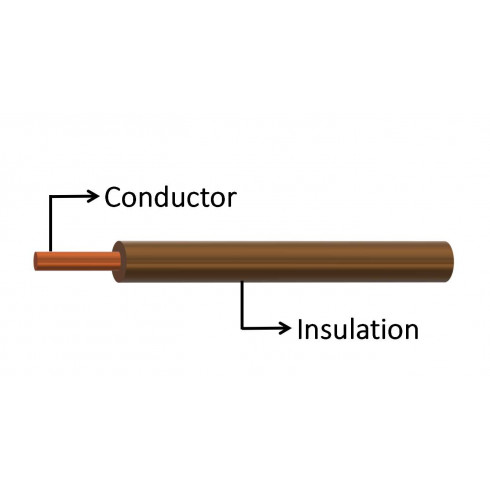

Summary
• Temperature : 105°C.
• Rated voltage : 600Volts.
• Uniform thickness of wire to ensure easy stripping and cutting.
• For general purpose internal wiring of electrical, and electrical equiment.
| UL1028 | ||||
| Wire Size | Conductor | Insulation | ||
| Construction | Resistance | Thickness | O.D | |
| AWG | No/mm | Ω/Km | mm | mm |
| 22 | 17/0.160 | 62.5 | 1.15 | 3.15 |
| 20 | 21/0.180 | 39.5 | 1.15 | 3.35 |
| 18 | 34/0.180 | 24.4 | 1.15 | 3.6 |
| 16 | 26/0.254 | 15.6 | 1.15 | 3.9 |
| 14 | 41/0.254 | 9.9 | 1.15 | 4.3 |
| 12 | 65/0.254 | 6.24 | 1.15 | 4.7 |
| 10 | 105/0.254 | 4.15 | 1.15 | 5.5 |
| 8 | 133/0.293 | 3.48 | 1.15 | 6.4 |
| 22 | 7/0.254 | 62.5 | 1.15 | 3.15 |
| 20 | 7/0.320 | 39.5 | 1.15 | 3.35 |
| 22 | 1/0.643 | 60.1 | 1.15 | 3.05 |
| 20 | 1/0.813 | 37 | 1.15 | 3.2 |
| 18 | 1/1.020 | 23.6 | 1.15 | 3.5 |
