UL3288

UL3288

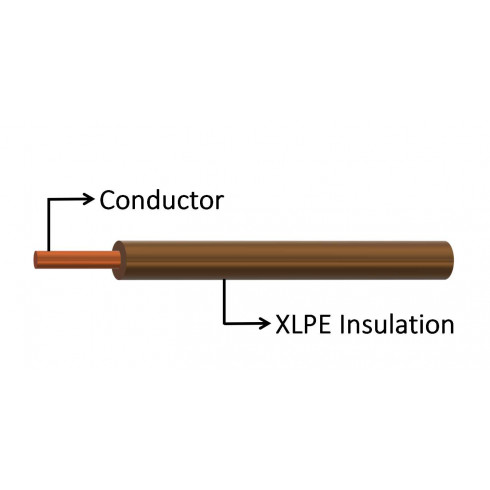

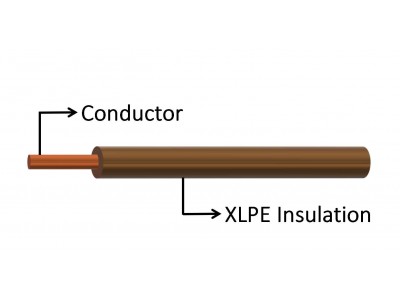

• Conductor : 30-9AWG.Stranded or solid tinned copper conductor.
• lnsulation : XLPE.
• Reference standard : UL758, UL1581.

Inquiry
Please refer to the "Inquiry List" on Contact Us.

Summary

• Temperature : 150°C.
• Rated voltage : 600Volts.
• For internal wiring of electronic equipment.

UL3288　　　
Wire Size Conductor Overall
Construction Resistance Diameter
AWG No./mm Ω/km mm
26 7/0.16 105 2.1
24 11/0.16 95 2.23
22 17/0.16 61.2 2.38
20 21/0.18 35.3 2.57
18 16/0.254 23.7 2.84
16 26/0.254 14.9 3.2
14 41/0.254 9.33 3.6
12 65/0.254 5.88 4.07
10 105/0.254 3.41 4.8
8 160/0.254 2.08 6.2
6 259/0.254 1.3 8
